4 Pin LED PL Lamp Manufacturer
Wholesale PL-S PL-C PL-T PL-L LED bulbs. 9 base types. UL/DLC certified CFL replacement since 2010.
9
BASE TYPES
26
LED MODELS
15+
YEARS EXPERIENCE
UL/DLC
CERTIFIED
LED PL Lamp Product Highlights
Professional LED lighting solutions for CFL replacement
Complete PL Lamp Series
PL-S, PL-C, PL-T, PL-L LED replacement with 9 base types. One supplier for all your CFL retrofit needs.
Selectable Color Temp
2700K-4000K – selectable CCT via integrated switch. Warm to cool white options.
Omni-Directional
Horizontal and Omni LED PL bulbs with 120 to 360 degree beam angles. Perfect for downlights.
Ballast Compatible
Type A works with existing ballasts. Type B bypasses ballast for direct wire. No rewiring.
9 Base Types Available
Click to expand and view specific models

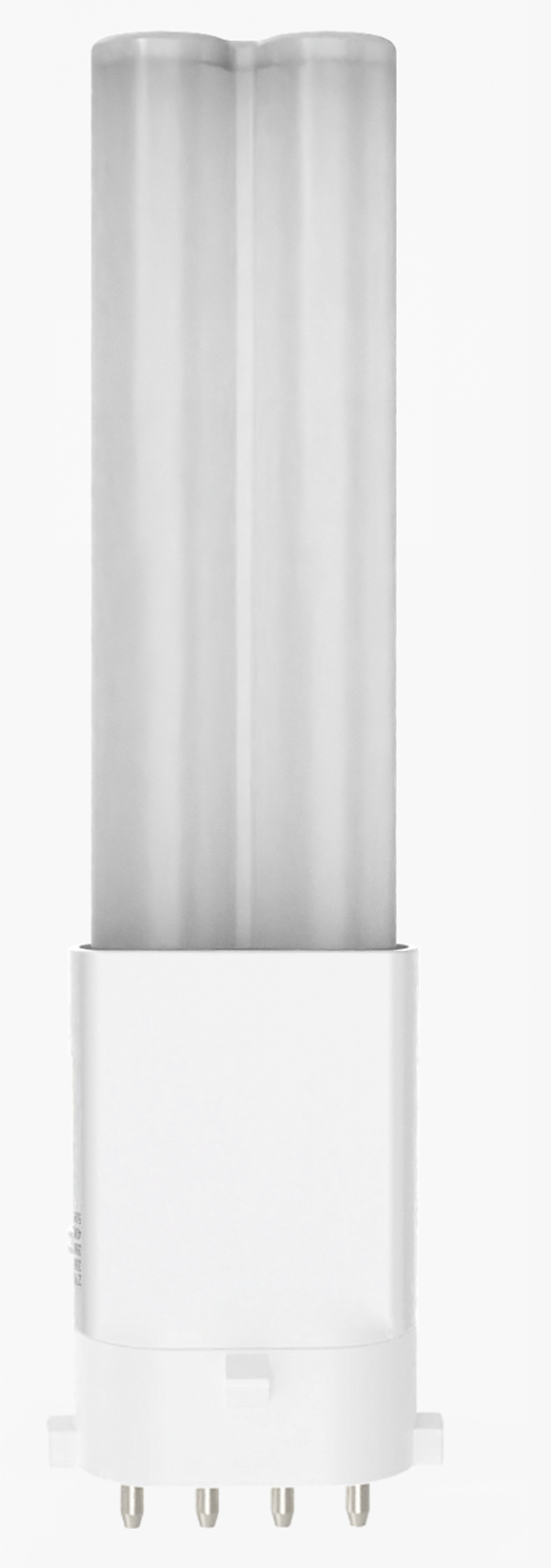

2G7/2GX7 Omni
Type A+B | CCT Selectable | Omni-directional. PL-S LED replacement for 2G7/2GX7 4-pin CFL. 3.0-5.5W.
| Watt | Lumens | Length | Base |
|---|---|---|---|
| 3.5W | 400 | 4.49″ | 2G7 |
| 5.5W | 620 | 6.2″ | 2GX7 |
| 3.0W | 370 | 4.49″ | 2G7 |
| 5.0W | 650 | 6.2″ | 2GX7 |

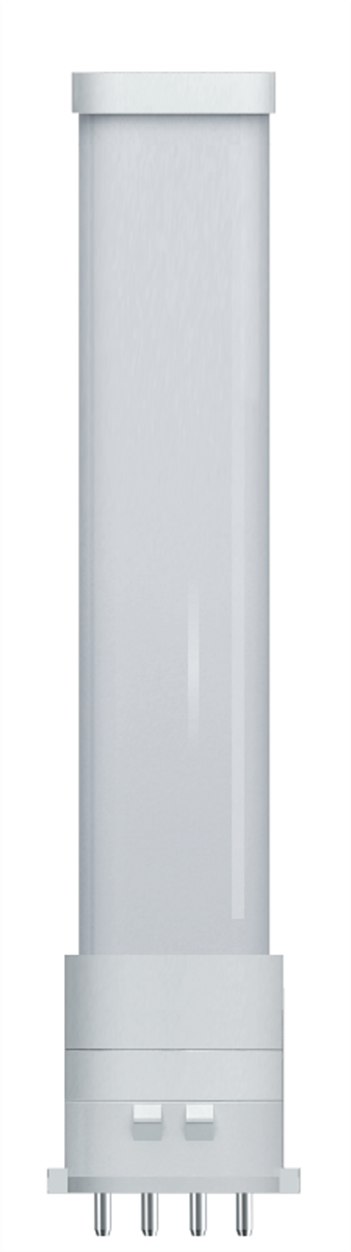

G23 Base
Type A | Horizontal. G23 2-pin LED PL-S lamp. Magnetic ballast compatible Type A.
| Watt | Lumens | Length | Base |
|---|---|---|---|
| 3.5W | 400 | 5.27558″ | G23 |
| 3.0W | 370 | 5.3″ | G23 |

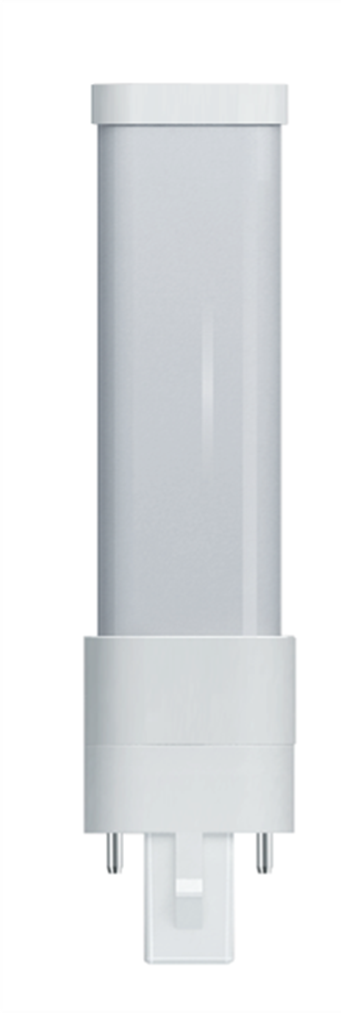

GX23 Base
Type A | Horizontal. GX23 2-pin LED PL-S bulb. Electronic ballast type, 3.5-5.5W.
| Watt | Lumens | Length | Base |
|---|---|---|---|
| 5.5W | 620 | 7.04723″ | GX23 |
| 5.0W | 650 | 7.04723″ | GX23 |
| 5.5W | 800 | 4.96″ | GX23 |

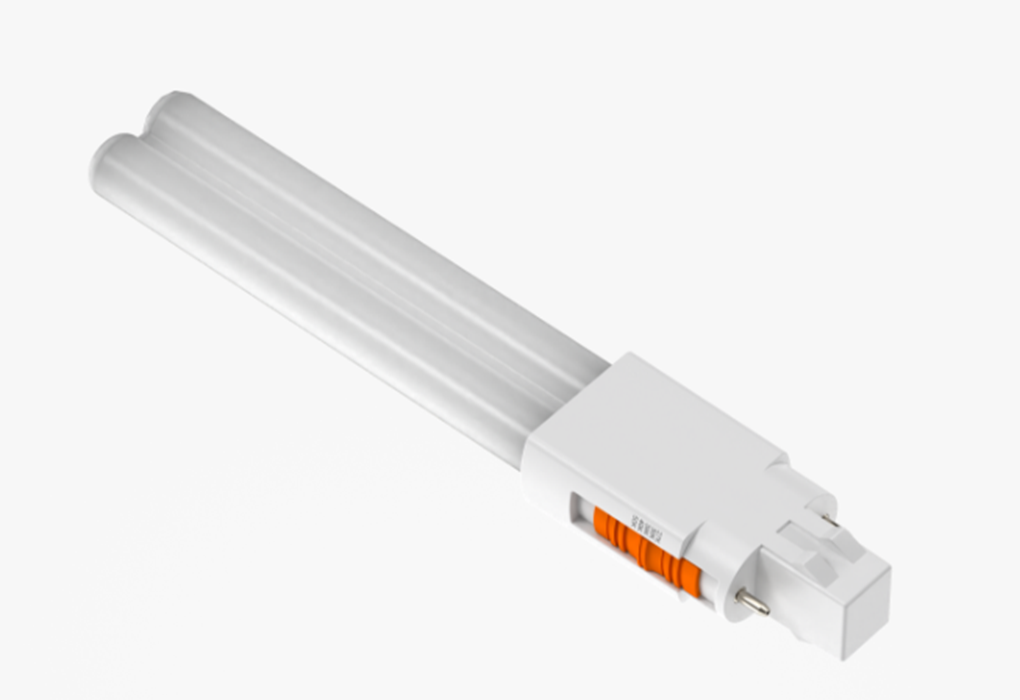

G24D Base
Type A | Horizontal/Omni. PL-C G24D 2-pin LED. 5.5-9.0W delivers 720-1200 lumens.
| Watt | Lumens | Size | Base |
|---|---|---|---|
| 5.5W | 800 | 5.09″ x 1.36″ | G24D |
| 9.0W | 1200 | 6.87″ x 1.36″ | G24D |

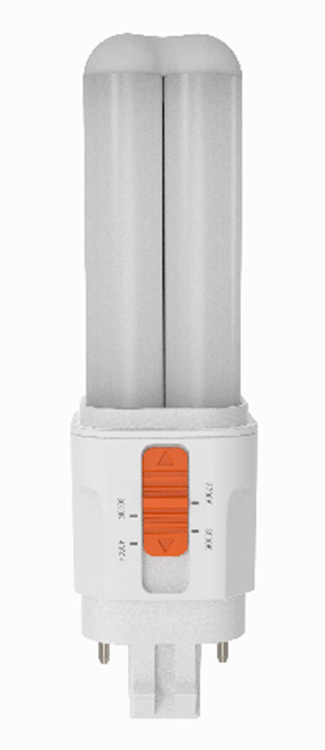

GX32 Base
Type A+B | Horizontal/Omni. PL-C GX32 2-pin LED bulb. 7-9W, Type A+B compatible.
| Watt | Lumens | Size | Base |
|---|---|---|---|
| 7.0W | 960 | 5.69″ x 1.4″ | GX32 |
| 9.0W | 1200 | 6.32″ x 1.4″ | GX32 |

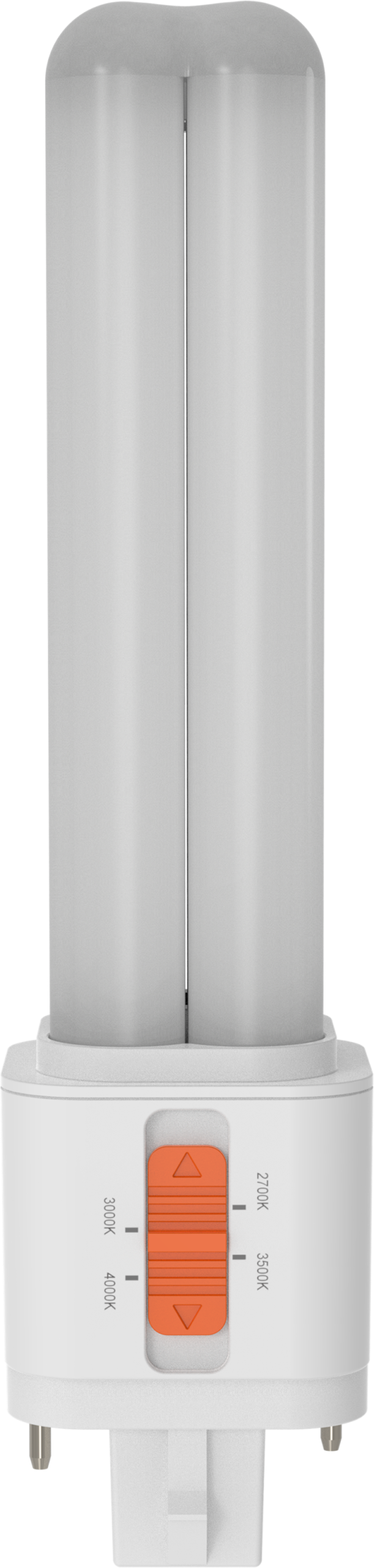

G24Q Base
Type A | Horizontal/Omni. PL-C G24Q 4-pin LED lamp. Electronic ballast compatible, 7-9.5W.
| Watt | Lumens | Size | Base |
|---|---|---|---|
| 7.0W | 960 | 5.96″ x 1.36″ | G24Q |
| 9.5W | 1200 | 6.87″ x 1.36″ | G24Q |

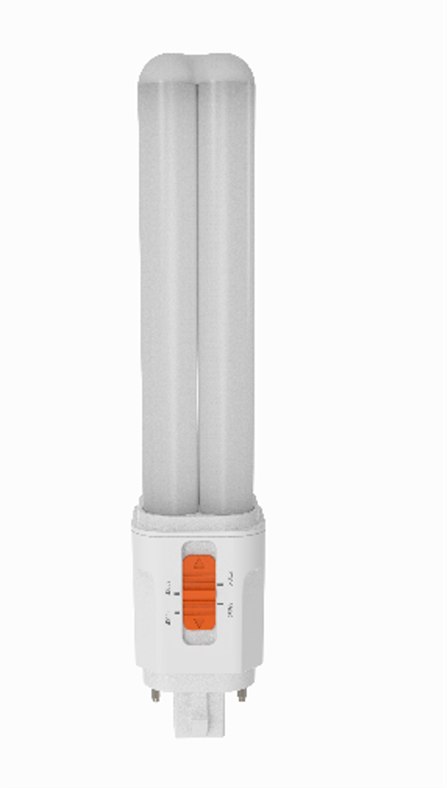

GX24D Base
Type A+B | Horizontal/Omni. PL-T GX24D 2-pin LED. 5.5-17W, triple tube design.
| Watt | Lumens | Size | Base |
|---|---|---|---|
| 5.5W | 800 | 4.17″ | GX24D |
| 7.0W | 960 | 4.92″ x 1.84″ | GX24D |
| 9.5W | 1200 | 5.7″ x 1.84″ | GX24D |
| 15.0W | 2100 | 6.318885″ x 1.84″ | GX24D |
| 17.0W | 2400 | 6.69″ x 1.84″ | GX24D |

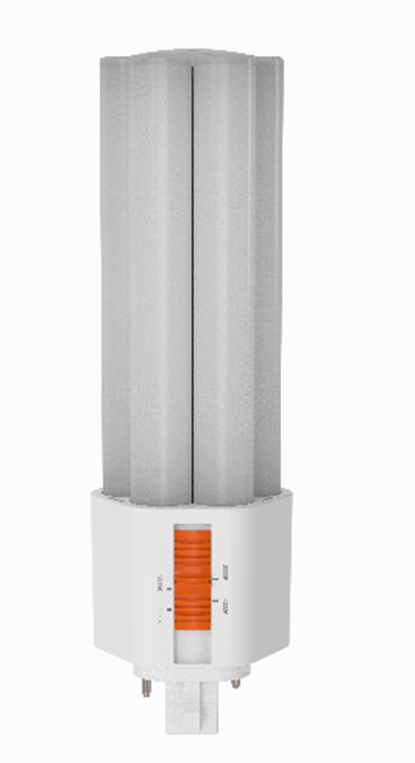

GX24D-5 Base
Type A+B | CCT Selectable | Horizontal/Omni. PL-T GX24D-5 high-power LED. 23W, up to 3300 lumens.
| Watt | Lumens | Size | Base |
|---|---|---|---|
| 23.0W | 3300 | 7.7″ x 1.84″ | GX24D-5 |

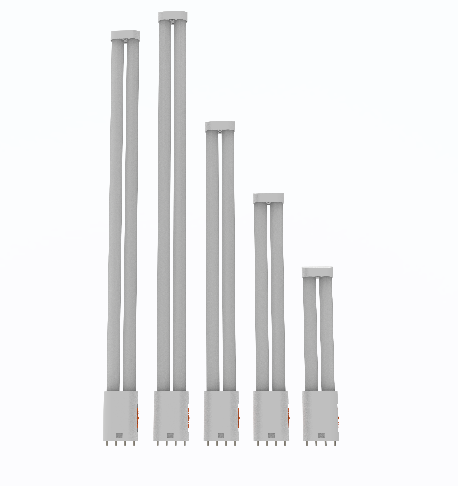

2G11 Base
Type A | CCT Selectable | 160. PL-L 2G11 4-pin LED PLL lamp. 8-22W linear base.
| Watt | Lumens | Size | Base |
|---|---|---|---|
| 8W | 1100 | 8.5″ | 2G11 |
| 10W | 1350 | 12.2″ | 2G11 |
| 14W | 2000 | 15.9″ | 2G11 |
| 15W | 2300 | 21.85″ | 2G11 |
| 22W | 3200 | 21.2″ | 2G11 |
Why Choose Harolux
UL and DLC Certified
cULus, Energy Star
OEM/ODM Service
Custom solutions
5 Year Warranty
Quality guaranteed
B2B Wholesale
Competitive pricing
Ready to Upgrade Your PL Lamps?
Get wholesale pricing on 4 pin LED bulbs. Request a quote today.
