Car Wash Lighting

Name: Car Wash Lighting
Brand: HAROLUX
Availability: InStock

Bendable Waterproof LED Tube Light

An excellent choice for car wash lighting. Shine your bays, vacuum arches, tunnels and parking lot with our bendable waterproof LED tube light. It emits bright and diffused light that is suitable for outdoor. Bendable and linkable feature make it more flexible in application. RGBW colorful and smart remote control options are available.

Features

Built-in universal voltage driver AC120-277V 50/60Hz
AC power from single end
Wide Beam Angle up to 240 degree
Linkable by quick connector
Bendable up to 30 degree
V-Shape dual LED rows
Installation accessories included
Lifetime 50,000 hours
RGBW color, connect by Bluetooth, controlled by APP
ETL FCC Certified

Advance LED Technology for Car Wash Lighting

It’s no doubt that LED lighting is the most reliable way to light up your car washes in nowadays. Harolux waterproof bendable LED tube light produces bright light for the facilities, while only consumes 10% energy of regular lights. With the aluminum alloy heatsink inside for heat dissipation, the tube light can lasts 50,000 hours lifetime and requires very low maintenance.

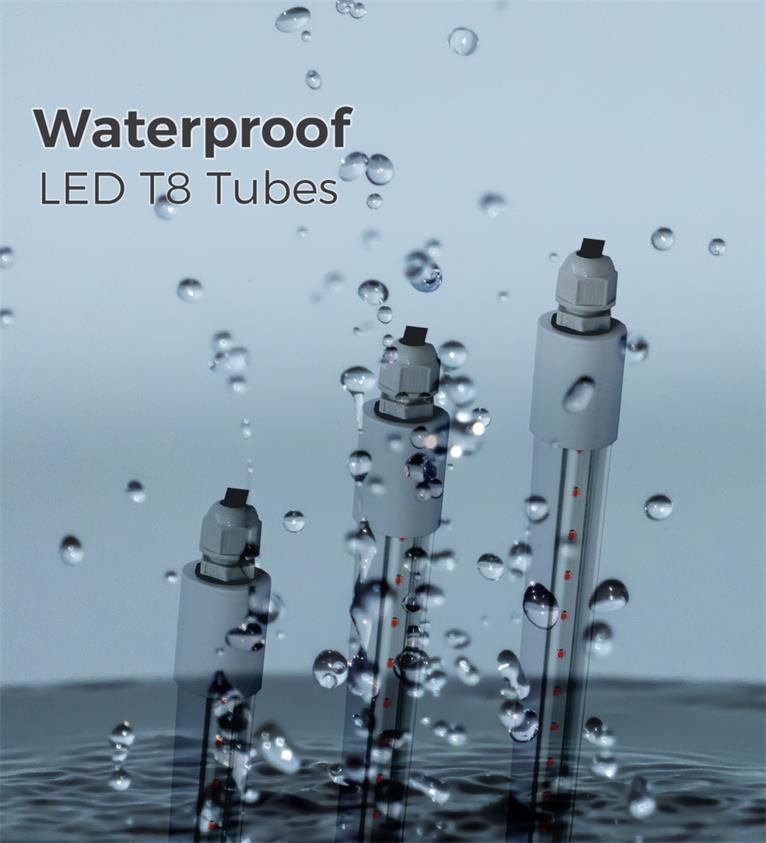

IP65 Waterproof Wet Location Rated

Each Tube light is IP65 wet location rated and ETL certified safety, perfect for outdoor where rain, dust, water, humidity and chemicals are present, always operates well in cold, hot, rainy, snow weather.

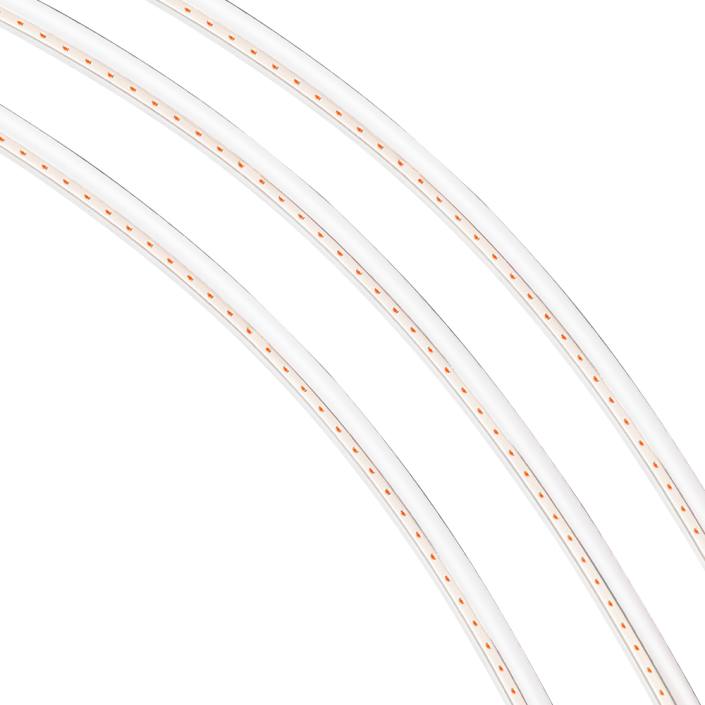

Fit to All Arches

The tube light is designed to fit to the curve of arches vacuum systems. Simply bend it by hands or brackets from two ends, an average adult male can do the job easily. Using 6 or 8 feet light, the bendable degree can reach up to 30 degree.

RGBW and Bluetooth Smart Control

Besides regular white light for illumination, we offer RGBW color changing option, which is smart controlled via Bluetooth connection. It creates an illusion that not only attracts more customers but support your sales events and holidays. To control the light you just need to download our APP which is available on both Apple Store and Google Play. It provides preset color changing scenes for light show, or also you are allowed to control the light manually as you needs.

Specification

More Details

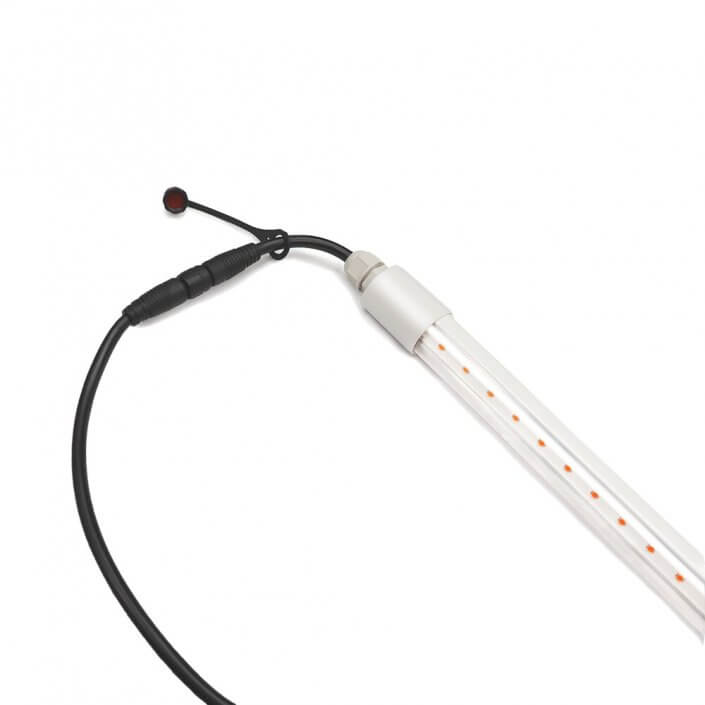

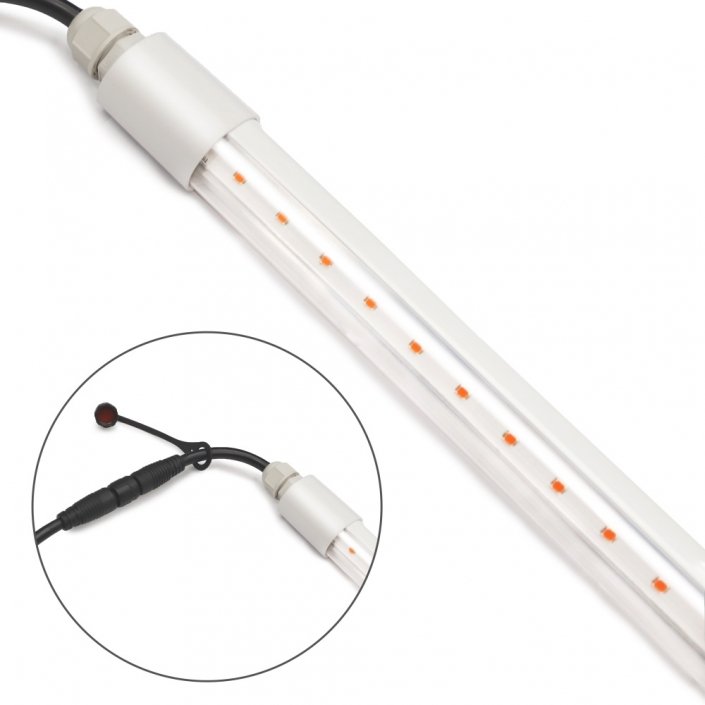

*Waterproof end cap to avoid electric shock risk.

*Plug-and-play design for easy connection and installation.

*V-Shape double LED rows provide wide light distribution

Standard Series

Model	T9-F4-15	T9-F6-22	T9-F8-30
Length	4 feet	6 feet	8 feet
Wattage	15W	22W	30W
Lumen	1800 lm	2650 lm	3600 lm
CRI	80	80	80
Input	AC120-277V 60Hz	AC120-277V 60Hz	AC120-277V 60Hz
Certification	ETL/FCC/RoHS	ETL/FCC/RoHS	ETL/FCC/RoHS
Warranty	3 Years	3 Years	3 Years
Bendable Degree	15	30	30

Premium Series

Model	T9-F4-30	T9-F6-45	T9-F8-60
Length	4 feet	6 feet	8 feet
Wattage	30W	45W	60W
Lumen	6000 lm	9000 lm	12000 lm
CRI	80	80	80
Input	AC120-277V 60Hz	AC120-277V 60Hz	AC120-277V 60Hz
Certification	ETL/FCC/RoHS	ETL/FCC/RoHS	ETL/FCC/RoHS
Warranty	3 Years	3 Years	3 Years
Bendable Degree	15	30	30

Get A Quote

Car Wash LED Lighting - Frequently Asked Questions

What type of LED lights are best for car wash bays?

IP65 waterproof LED tube lights specifically designed for wet locations. Harolux bendable waterproof LED tubes feature V-shape dual LED rows for wide 240-degree beam angle, perfect for arches and tunnel systems. ETL/FCC/RoHS certified for safety compliance.

What wattage LED lights do I need for my car wash?

Harolux offers two series for different needs:

Standard Series (15W-30W): - 4 ft tube: 15W (1800 lm) - ideal for small vacuum areas - 6 ft tube: 22W (2650 lm) - for self-service bays - 8 ft tube: 30W (3600 lm) - for medium bays Premium Series (30W-60W): - 4 ft tube: 30W (6000 lm) - high brightness option - 6 ft tube: 45W (9000 lm) - large bays - 8 ft tube: 60W (12000 lm) - tunnel systems, maximum output

What color temperature is best for car wash lighting?

5000K-6500K (cool white to daylight) is optimal for car wash facilities. This color temperature shows dirt, grime, and water spots most clearly, allowing customers to verify cleaning results. Avoid warm white (2700K-3000K) as it can make vehicles appear yellowish and hide imperfections.

How many LED tubes do I need for a car wash tunnel?

For a 50 ft tunnel using Harolux Premium Series 60W tubes (12,000 lm each): - Position tubes every 8-10 ft along both sides - Approximately 10-12 tubes for uniform coverage - For wider tunnels over 12 ft, add center-mounted tubes

For smaller bays (15x15 ft), 4-5 tubes of 45W-60W provide adequate illumination at industry-standard 500 lux.

Why is IP65 rating essential for car wash lighting?

IP65 = Dust-tight + Water jet protected. Car wash environments face constant water spray, soap chemicals, and humidity. IP65-rated fixtures withstand direct water jets from any angle, preventing electrical failure and safety hazards. Harolux tubes also feature waterproof end caps to eliminate electric shock risk.

How long do Harolux LED car wash lights last?

50,000 hours lifetime with aluminum alloy heatsink for efficient heat dissipation. This equals 5-10 years of operation depending on usage. Compare to fluorescent lights at only 10,000-15,000 hours. LED reduces replacement frequency by 5x, significantly cutting maintenance costs in hard-to-reach car wash installations. 3-year warranty included.

Can bendable LED tubes fit car wash arches?

Yes! Harolux 6 ft and 8 ft tubes bend up to 30 degrees by hand or with brackets. They fit arch contours perfectly, eliminating dark spots between fixtures. V-shape dual LED rows provide wide 240-degree light distribution for seamless coverage around curves in vacuum and wash arch systems.

What voltage do Harolux car wash LED lights use?

AC120-277V 50/60Hz universal voltage input - compatible with both US commercial (120V) and industrial (277V) power systems. Built-in driver handles voltage fluctuations automatically. Single-end power connection simplifies wiring. Plug-and-play design with quick connectors for easy installation. Single-end power connection simplifies wiring. Plug-and-play design with quick connectors for easy installation.

What is the ROI for upgrading to LED car wash lights?

Typical savings: $1,500-$2,000/year per bay on electricity. LED consumes only 10% energy of traditional lighting. Payback period: 2-3 years. 10-year total savings exceed $15,000 including eliminated maintenance costs. Plus brighter lighting attracts more customers and improves their experience.

Can I use RGBW smart lights for premium car wash bays?

Absolutely! Harolux RGBW color-changing option connects via Bluetooth and is controlled through our APP (available on Apple Store and Google Play). Create custom lighting scenes for promotions, holidays, or branding. Smart control allows scheduling and remote management. Perfect for detail shops and premium wash services.

Car Wash LED Lighting Installation Guide

Step 1: Measure Your Space

Record these dimensions: - Bay dimensions (Length x Width x Height) - Tunnel length and number of sections - Arch spacing intervals (typically 8-10 ft) - Ceiling height and mounting points - Existing electrical infrastructure locations

Step 2: Calculate Lighting Requirements

Formula: Area (sq ft) x Target Lux = Total Lumens Needed

Example calculation for 15x15 ft bay: - Area: 15 ft x 15 ft = 225 sq ft - Target: 500 lux (industry standard for car washes) - Total lumens needed: 225 x 500 = 112,500 lumens - Using Premium 60W tubes (12,000 lm each): 9-10 tubes - Using Premium 45W tubes (9,000 lm each): 12-13 tubes

Step 3: Choose the Right Harolux Model

Recommended models by application:

Application	Recommended Model
Small vacuum areas	T9-F4-15 (4ft, 15W, 1800 lm)
Self-service bays	T9-F6-22 (6ft, 22W, 2650 lm)
Wash arches (bendable)	T9-F6-45 (6ft, 45W, 30-degree bend)
Large bays	T9-F8-60 (8ft, 60W, 12000 lm)
Tunnel systems	T9-F8-60 Premium Series
Detail/premium bays (RGBW)	RGBW Smart Control Series

Step 4: Mount and Wire the Fixtures

Installation steps: 1. Secure mounting brackets on arches or ceiling 2. Use IP65-rated junction boxes for all connections 3. Connect to AC120V power supply 4. Wire to dedicated circuit breaker 5. Ensure proper grounding for safety 6. Seal cable entries with waterproof glands 7. Use quick connectors for plug-and-play linking

Step 5: Test and Optimize

Final steps: 1. Power on and verify uniform coverage 2. Measure floor-level lux with light meter (target: 500 lux) 3. Adjust tube angles to eliminate dark spots 4. Test waterproof seals with water spray 5. For RGBW models: download APP and test Bluetooth connection 6. Document final layout for future maintenance 7. Schedule quarterly cleaning for optimal output

Car Wash LED Lighting for Bays, Tunnels, Arches and Vacuum Areas

HAROLUX supplies IP65 car wash LED lighting for professional operators, contractors and distributors who need waterproof fixtures, custom layouts and factory-direct OEM/ODM support. Send us your bay count, tunnel length, ceiling height and target brightness — our team can recommend tube lights, canopy lights and detailing-area fixtures for your project.

IP65Wet bay & tunnel ready

OEM/ODMCustom length, CCT, wiring

7-15 DaysTypical sample lead time

5-YearWarranty support

Compare Car Wash Lighting Applications

Area	Recommended Lighting	Key Requirement	Buyer Notes
Wash Bays	IP65 waterproof LED tube or vapor-tight fixtures	Moisture resistance, glare control	Choose corrosion-resistant housing for soap, spray and humidity.
Tunnels	Continuous LED linear lighting	Uniform brightness along vehicle path	Send tunnel length and mounting height for layout support.
Lighting Arches	Bendable RGB/white LED tube systems	Visual effect + waterproof installation	OEM color, length and controller options are available.
Vacuum / Detailing Areas	Canopy, panel or high-output linear lighting	Clean visibility for interiors and paint inspection	Higher CRI and neutral/cool CCT improve detailing accuracy.

Request Factory-Direct Car Wash Lighting Pricing

For accurate OEM/ODM quotation, send your project details: bay quantity, tunnel length, ceiling height, preferred CCT, voltage, mounting method and target delivery date. HAROLUX supports custom samples, commercial project supply and distributor orders from our 7,000 sqm LED lighting factory.

IP65 waterproof car wash LED lighting for wet environments
Factory-direct OEM/ODM customization for distributors and contractors
UL/ETL/DLC options depending on product family and project requirements
7-15 day typical sample lead time and 5-year warranty support

Get Car Wash Lighting Quote

Learn More About Car Wash LED Lighting

Explore our comprehensive guides to help you make the right lighting decisions for your car wash facility:

Related Products

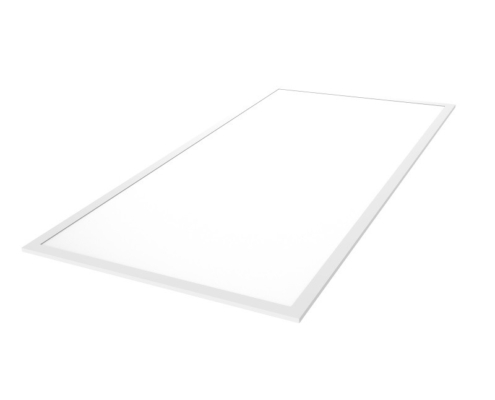

LED Freezer Light T9 Series LED Stadium Light LED Wall Pack Light LED Linear Strip Light Retrofit LED Strip Light LED Flat Panel Light
