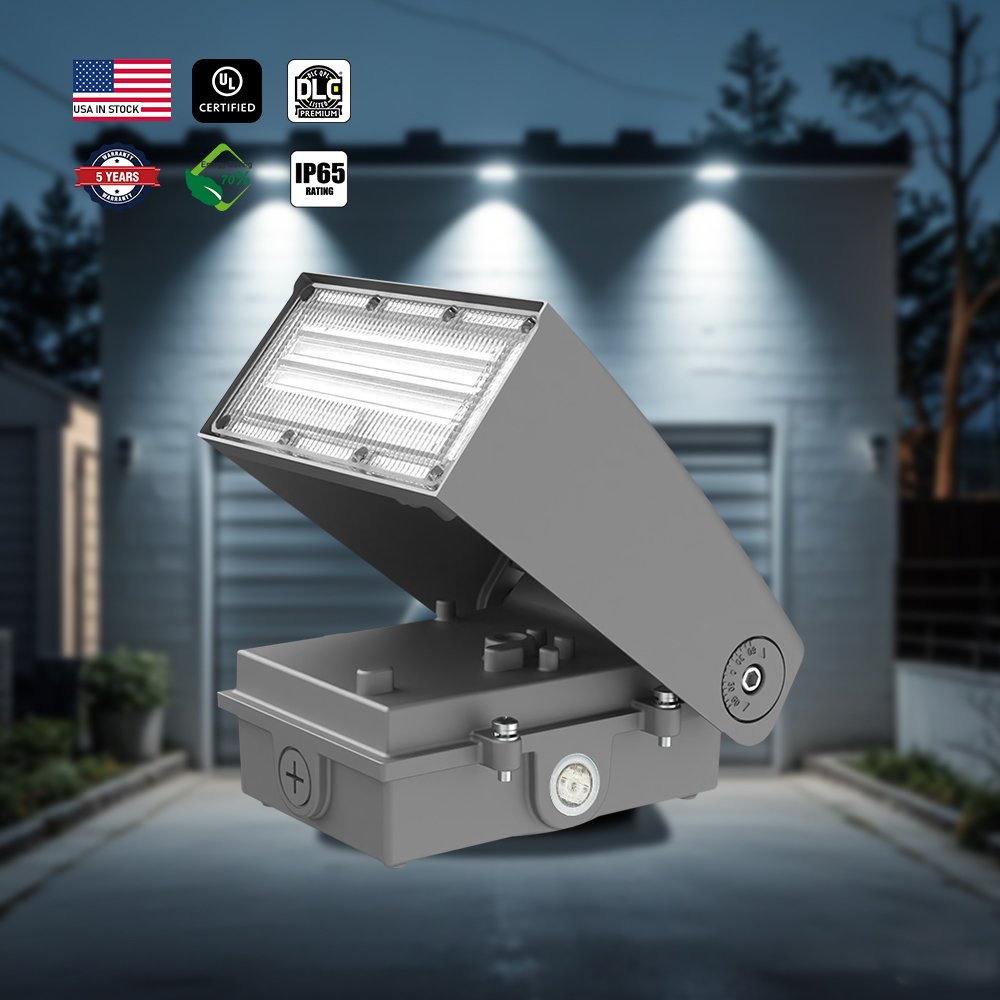

HAROLUX SS-WK06 Full Cutoff LED Wall Pack Light is a high-performance outdoor security lighting solution with Dark Sky compliant design. Featuring selectable wattage from 40W to 120W and adjustable color temperature, this full cutoff wall pack delivers exceptional 140LM/W efficacy while eliminating upward light spill and reducing light pollution. Perfect for commercial buildings, warehouses, and facilities requiring Dark Sky friendly illumination.
Key Features
- Full Cutoff Design: Dark Sky compliant, zero uplight, reduces light pollution
- Selectable Wattage: 40W/60W/80W/100W/120W

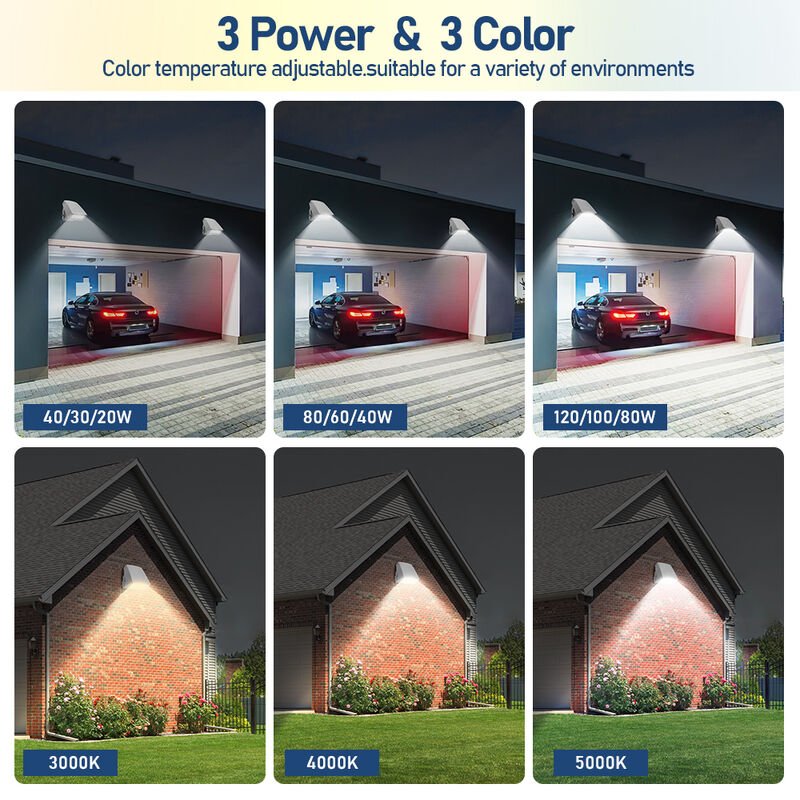

- Tunable CCT: 3000K/4000K/5000K/5700K selectable
- High Efficacy: 140LM/W with precision reflector optics
- 0-10V Dimmable for smart controls
- Multiple Voltage: AC120-277V / 120-347V / 277-480V
- IP65 Waterproof for outdoor use
- 50,000+ Hour Lifespan with 5-year warranty
- ETL Certified for commercial applications
Technical Specifications
| Model | Power | Lumens | Voltage |
|---|---|---|---|
| SS-WK06-40W | 40W | 5,600LM | AC120-277V AC120-347V AC277-480V |
| SS-WK06-60W | 60W | 8,400LM | |
| SS-WK06-80W | 80W | 11,200LM | |
| SS-WK06-100W | 100W | 14,000LM | |
| SS-WK06-120W | 120W | 16,800LM |
Product Details
Why Full Cutoff Matters
Full cutoff fixtures direct 100% of light output downward, eliminating glare and skyglow. This design meets Dark Sky requirements, reduces light trespass onto neighboring properties, and improves visibility by directing light only where needed.
Applications
- Commercial Building Perimeters (Dark Sky compliant)
- Warehouse Exterior Lighting
- Parking Lots and Garages
- Loading Docks and Entryways
- Industrial Facilities
- Security Lighting for Campuses & Schools
Why Choose HAROLUX?
- 70%+ energy savings vs metal halide
- Full cutoff design meets Dark Sky standards
- Zero uplight – eliminates light pollution
- ETL certified for commercial use
- OEM services available
- USA stock, fast delivery
FAQ
What is a full cutoff wall pack?
A full cutoff fixture has a shield that prevents light from emitting above the horizontal plane, directing all light downward to reduce glare and skyglow.
Is this Dark Sky compliant?
Yes, the SS-WK06 full cutoff design meets Dark Sky requirements for outdoor lighting.
What mounting height is recommended?
8-20 feet depending on wattage and coverage area needed.
Do you offer bulk pricing?
Yes, volume discounts for large projects.
LED Wall Pack Light Buyer’s Guide — Choosing the Right Fixture
Application Guide
| Application | Recommended Wattage | Key Requirement |
|---|---|---|
| Building Perimeter Security | 80W-120W | High output, wide distribution, photocell |
| Loading Dock & Service Entrance | 60W-80W | Impact resistant, IP65 waterproof |
| Walkway & Pathway | 40W-60W | Glare control, downward distribution |
| Parking Lot Edge | 80W-120W | Type III distribution, cutoff design |
| Retail Storefront | 40W-60W | Attractive design, selectable CCT |
LED vs HID — Wall Pack Savings
| Metric | Traditional | LED | Savings |
|---|---|---|---|
| System Wattage | 175W Metal Halide | 60W LED | 66% less |
| Annual Energy (12h/day) | 767 kWh | 263 kWh | 504 kWh |
| Annual Cost (@$0.12/kWh) | $92.04 | $31.56 | $60.48/fixture |
| Lamp Life | 15,000 hrs | 50,000+ hrs (L70) | 3x longer |
* Based on 12-hour nightly operation. Actual savings vary by local rates. Contact us for a project-specific ROI analysis.
