What is HAROLUX LED Post Top Light SS-PT01?
The HAROLUX SS-PT01 is an ETL-certified LED post top light designed for outdoor parking areas, gardens, pathways, and commercial landscapes. With high luminous efficiency up to 140 lm/W, this fixture delivers exceptional brightness while reducing energy costs by over 70% compared to traditional HID or metal halide lamps.
Built with a die-cast aluminum housing and polycarbonate lens, the SS-PT01 offers superior durability and uniform 120° illumination. Available in 30W, 40W, 60W, and 90W models with selectable CCT (3000K/4000K/5000K/5700K), it covers a wide range of applications—from city streets and parking lots to pathways, parks, and residential communities.

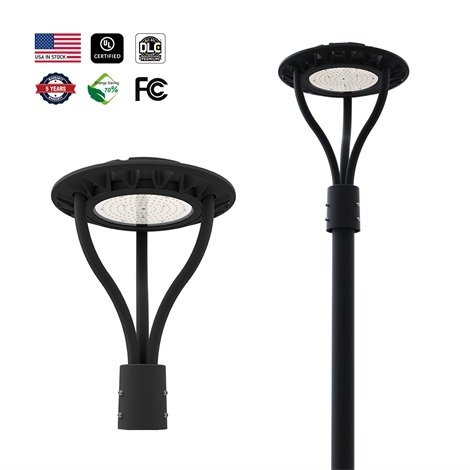

Product Images
Product Detail Images
Key Features & Benefits
1. High Luminous Efficiency
Up to 140 lm/W, delivering bright and even illumination while significantly reducing energy consumption compared to conventional HID lamps.
2. Flexible CCT Options
3CCT Selectable: 3000K / 4000K / 5000K / 5700K for flexible lighting design to match different application requirements.
3. Wide Voltage Input
AC120-277V / AC120-347V, compatible with North American grid systems for versatile installation.
4. IP65 Waterproof Rating
Designed for year-round outdoor use in rain, snow, or heat—perfect for harsh outdoor environments.
5. Photocell Sensor Available
Automatically turns lights on/off for energy savings and convenience (optional accessory).
6. Universal Mounting Design
Fits standard 2.36″-3″ poles for easy installation on existing infrastructure.
7. Long Lifespan & Low Maintenance
Over 50,000 hours of maintenance-free performance with 5-year warranty.
8. Premium Certifications
ETL, DLC Premium, FCC, RoHS compliant—meets strict North American standards.
Technical Specifications
| Parameter | Value |
|---|---|
| Model Number | SS-PT01 |
| Power Options | 30W / 40W / 60W / 90W |
| Luminous Flux | 4,200 LM (30W) / 5,600 LM (40W) / 8,400 LM (60W) / 12,600 LM (90W) |
| Efficacy | Up to 140 LM/W |
| Color Temperature | 3000K / 4000K / 5000K / 5700K Selectable |
| CRI | Ra >80 |
| Beam Angle | 120° |
| Input Voltage | AC120-277V / AC120-347V |
| Material | Die-cast Aluminum Housing + Polycarbonate Lens |
| Pole Diameter | Fits 2.36″ – 3″ (60mm – 76mm) poles |
| Protection Rating | IP65 Waterproof |
| Operating Temperature | -40°F ~ 113°F (-40°C ~ 45°C) |
| Lifespan | >50,000 Hours |
| Warranty | 5 Years Limited |
| Certifications | ETL, DLC Premium, FCC, RoHS |
| Dimmable | Yes (0-10V) |
Detailed Model Specifications
| Model | Power | Lumen Output | Replaces |
|---|---|---|---|
| SS-PT01-30W | 30W | 4,200 LM | 100W HID |
| SS-PT01-40W | 40W | 5,600 LM | 150W HID |
| SS-PT01-60W | 60W | 8,400 LM | 200W HID |
| SS-PT01-90W | 90W | 12,600 LM | 300W HID |
Applications
- Public parks, pathways, and community walkways
- Parking lots, campuses, and courtyards
- Commercial plazas and shopping centers
- Residential developments and HOAs
- Garden and landscape accent lighting
- Street and roadway illumination
- Any outdoor area requiring safe, efficient illumination
LED vs HID: Energy Savings Comparison
| Feature | Traditional HID | HAROLUX LED Post Top |
|---|---|---|
| Energy Efficiency | 50-80 LM/W | Up to 140 LM/W |
| Energy Savings | Baseline | 70%+ reduction |
| Lifespan | 10,000-20,000 hours | >50,000 hours |
| Warm-up Time | 5-15 minutes | Instant on |
| Maintenance | Frequent lamp changes | Minimal maintenance |
| Light Quality | Color shift over time | Consistent CCT |
| Annual Operating Cost | $150-$250 per fixture | $40-$80 per fixture |
Installation Guidelines
Recommended Pole Height
| Wattage | Pole Height | Application |
|---|---|---|
| 30W | 2.5-3 meters (8-10 ft) | Courtyards, walkways |
| 40W | 3-4 meters (10-13 ft) | Parks, pathways |
| 60W | 3.5-4.5 meters (12-15 ft) | Parking lots, campuses |
| 90W | 4-5 meters (13-16 ft) | Large parking areas, streets |
Mounting Instructions
- Universal fit for standard 2.36″-3″ (60mm-76mm) diameter poles
- Simple twist-lock or bolt-on installation
- Adjustable mounting bracket for precise positioning
- Photocell sensor easily attaches to fixture body
Customization Options
- Photocell sensor: Automatic dusk-to-dawn operation
- Motion sensor: Occupancy-based dimming for additional savings
- Special voltages: 277V, 347V for commercial applications
- Custom CCT: Other color temperatures available for special projects
- OEM services: Private labeling with MOQ 100 units
Frequently Asked Questions (FAQ)
What pole size does the SS-PT01 fit?
The SS-PT01 fits standard 2.36″ to 3″ (60mm-76mm) diameter poles, which is the most common size for outdoor post lighting in North America.
Is the photocell sensor included?
The photocell sensor is optional. It can be added for automatic dusk-to-dawn operation, providing additional energy savings and convenience.
Can I use this fixture for street lighting?
Yes, the 60W and 90W models are suitable for residential and secondary street lighting. For main roads and highways, higher wattage fixtures may be required.
What is the payback period?
Most customers achieve a 2-3 year payback through energy savings (70%+ reduction), reduced maintenance, and utility rebates. DLC Premium certification qualifies for maximum rebate programs.
Do you offer bulk pricing for large projects?
Yes, we offer volume discounts for municipalities, developers, and contractors. Contact us for project-specific pricing.
Is USA stock available?
Yes, we maintain USA stock for fast delivery on standard models. Custom configurations typically ship within 7-15 days.
Support and Services
- Expert installation guidance and support
- Free photometric layouts for large projects
- Troubleshooting assistance
- 5-year warranty with defect replacement
- Maintenance recommendations and tips
- OEM/ODM services for custom branding
Get a Quote
Contact HAROLUX for:
- Project-specific pricing and volume discounts
- Free lighting design and photometric analysis
- Sample evaluation program
- OEM/private label opportunities
Last updated: March 2026 | Technical specifications subject to change. Consult factory for latest information.
