LED Freezer & Cold Storage Lighting: Complete Guide (2026)

Quick Answer: LED freezer lights rated for -40°C operation deliver 50% energy savings compared to fluorescent tubes, with 50,000+ hour lifespan eliminating frequent bulb changes in cold environments. Standard LED lights fail in freezers due to driver degradation and condensation.

Table of Contents

1. Why Standard LED Lights Fail in Freezers
2. LED Freezer Light Specifications
3. Cold Storage Lighting Standards
4. Energy Savings: LED vs Fluorescent
5. Installation Guide
6. Frequently Asked Questions
7. Product Recommendation

1. Why Standard LED Lights Fail in Freezers

Standard LED lights are NOT suitable for freezer environments:

Driver Failure at -40°C

• Capacitor electrolyte freezes, reducing capacity by 80%+
• Lifespan drops from 50,000 to <5,000 hours
• Startup fails or produces unstable output

Condensation Damage

• Warm air condenses on cold fixtures when doors open
• Water penetrates IP20/IP40 housings
• Corrosion, short circuits, mold growth

Issue	Standard LED	Freezer-Rated LED
Startup at -40°C	Fails/flickers	Instant start
Light output	30-50% reduction	Stable
Lifespan at -40°C	<5,000 hrs	50,000+ hrs
Warranty	Voided	Covered

2. LED Freezer Light Specifications

Minimum Requirements

• Operating Temperature: -40°C to +25°C
• Driver Rating: Cold-rated capacitors
• Housing: IP65+ waterproof
• Certifications: UL/ETL, DLC, FDA-compliant

Harolux T9 Series Specifications

Model	Length	Wattage	Lumens
T9-4FT	4ft	18W	2,700 lm
T9-5FT	5ft	22W	3,300 lm
T9-6FT	6ft	27W	4,050 lm
T9-8FT	8ft	54W	8,100 lm

Efficacy: 150 LPW | IP65 | UL/ETL/DLC | 5-year warranty

3. Cold Storage Lighting Standards

Application	Temperature	Lux
Walk-in Freezers	-40°C to -20°C	200-300
Frozen Food Storage	-25°C to -15°C	300-400
Cold Storage Warehouses	-10°C to 0°C	300-500
Display Cases	0°C to +5°C	500-1000

4. Energy Savings: LED vs Fluorescent

Metric	Fluorescent T8	LED T9
Wattage	32W	18W
Output at -40°C	1,960 lm (30% loss)	2,700 lm
Lifespan	10,000 hrs	50,000 hrs
Annual Cost (20 fixtures)	$2,516	$1,000
5-Year Total	$13,080	$6,200

5-Year Savings: $6,880 (53%)

5. Installation Guide

Fixture Placement

• Center over storage aisles
• 12-inch clearance from walls
• Every 8-10 feet along aisle
• Avoid above freezer doors

Safety Checklist

1. ✅ -40°C rated fixtures
2. ✅ IP65+ waterproof
3. ✅ UL/ETL certification
4. ✅ Shatter-resistant lens
5. ✅ Vapor-sealed junction boxes

6. Frequently Asked Questions

Q: Can I use regular LED lights in a freezer?

A: NO. Standard LEDs fail within 6-12 months. Driver capacitors freeze, causing startup failure.

Q: What temperature range do freezer LEDs support?

A: -40°C to +25°C, covering walk-in freezers, frozen storage, and refrigerated areas.

Q: Why do fluorescent lights dim in freezers?

A: Mercury vapor condenses at -40°C, reducing arc efficiency by 30-50%.

Q: How often do LED freezer lights need replacement?

A: 50,000+ hours = 5+ years in 24/7 operation.

7. Product Recommendation

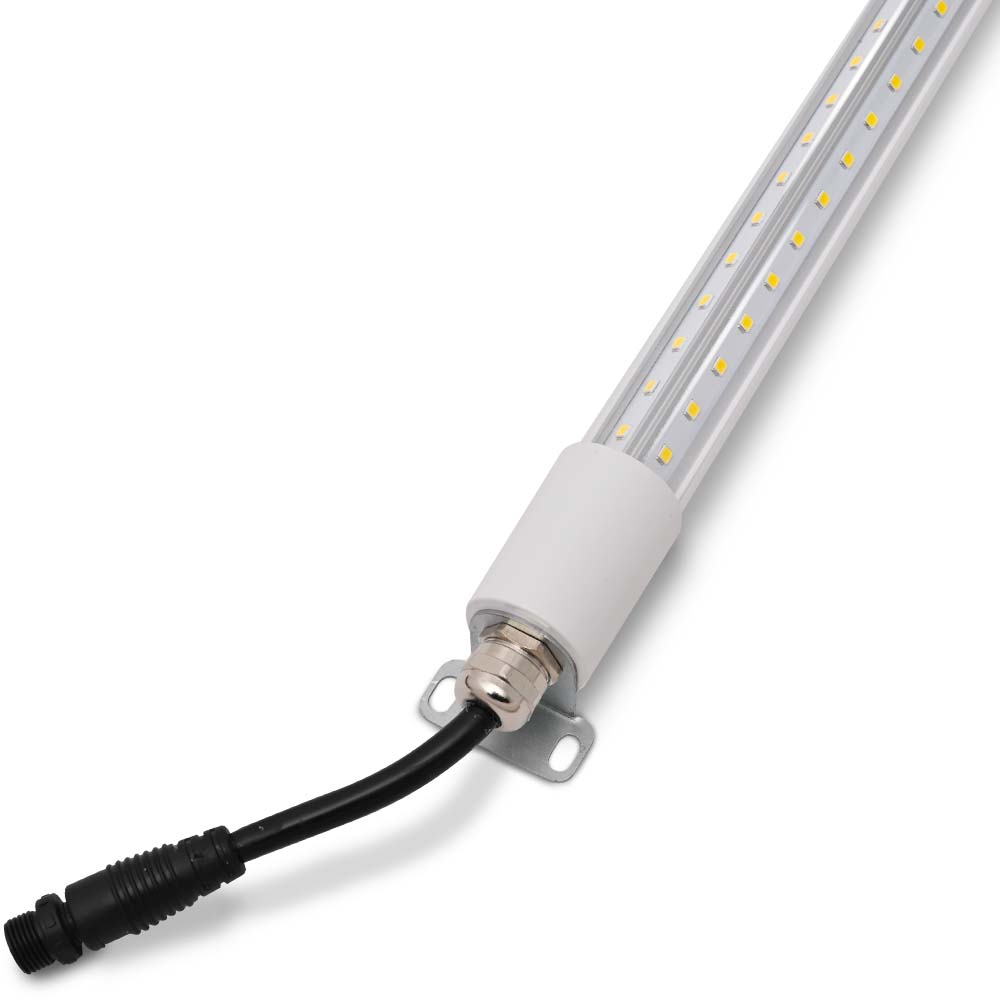

Harolux T9 Series LED Freezer Light

• ✅ -40°C Rated Operation
• ✅ 150 LM/W Efficacy
• ✅ IP65 Waterproof
• ✅ UL/ETL/DLC Certified
• ✅ Shatter-Resistant Lens
• ✅ 5-Year Cold Storage Warranty
