The Retrofit LED Strip Light series delivers exceptional 130 LM/W efficacy for upgrading existing fluorescent strip fixtures. Designed for direct replacement of T8/T12 strips, this high-lumen retrofit solution reduces energy consumption by 50-60% while maintaining or improving light output.
Available in 4ft and 8ft lengths, this retrofit series is ideal for warehouses, schools, hospitals, and commercial spaces seeking maximum energy savings without full fixture replacement.
Retrofit LED Strip Light Applications
- Warehouse Lighting Retrofit – Replace existing T8/T12 strips with 50-60% energy savings. Maintain or increase light levels with 130LM/W high efficacy.
- School & University Upgrades – Flicker-free LED illumination improves learning environments. Instant start, no hum, no mercury.
- Hospital & Healthcare – High CRI LED chips render skin tones accurately. Suitable for patient rooms, corridors, and treatment areas.
- Retail Store Renovations – Upgrade existing strip fixtures without ceiling modifications. Quick installation minimizes disruption.
- Parking Garage Interiors – Damp location rated options available. Low maintenance reduces ongoing costs.
Key Features & Benefits
130 LM/W High Efficacy
Industry-leading efficacy means more light per watt. A 40W retrofit produces 5,200 lumens—equivalent to a 100W fluorescent tube. Maximum energy savings without compromising illumination.
Direct Retrofit Installation
Designed for direct replacement of existing fluorescent strips. Same mounting brackets, same electrical connections. No fixture modification required. Typical installation: 15-20 minutes per fixture.
Universal Voltage Input
AC120-277V input works with most commercial electrical systems. No need to verify line voltage before installation. Suitable for 120V, 208V, 240V, and 277V circuits.
Long 50,000 Hour Lifespan
Quality LED chips and drivers ensure reliable operation. 50,000+ hour rated life means 10+ years of maintenance-free service at 12 hours daily operation. No lamp changes, no ballast replacements.
Quality Light Output
Available in 3500K, 4000K, and 5000K color temperatures. CRI >80 ensures accurate color rendering. Flicker-free driver protects eye health.
Technical Specifications
| Parameter | Specification |
|---|---|
| Type | Retrofit LED Strip Light |

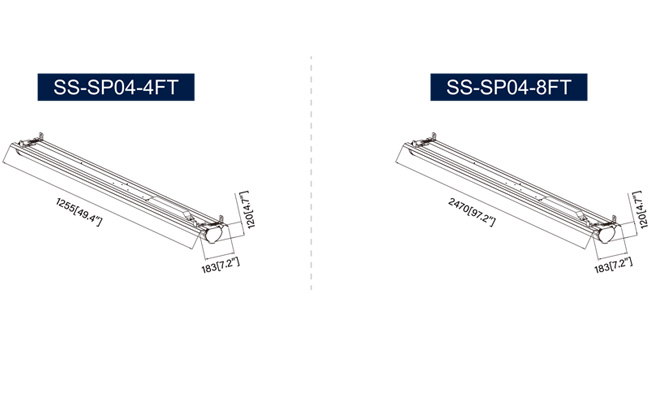

| Available Lengths | 4ft / 8ft |
| Wattage | 40W (4ft) / 80W (8ft) |
| Lumen Output | 5,200 LM (4ft) / 10,400 LM (8ft) |
| Efficacy | 130 LM/W |
| Color Temperature | 3500K / 4000K / 5000K |
| Input Voltage | AC120-277V |
| CRI | >80 |
| Power Factor | >0.95 |
| Beam Angle | 120° |
| Housing | Aluminum with polycarbonate lens |
| Lifespan | 50,000+ hours |
| Certifications | UL / ETL / DLC / CE / RoHS |
| Warranty | 5 years |
Fluorescent to LED Savings Calculator
| Fluorescent | LED Retrofit | Energy Savings | Annual Savings* |
|---|---|---|---|
| 4ft T8 (32W + 8W ballast) | 40W LED Retrofit | 40W → 40W | $0 + 60% more light |
| 4ft T12 (40W + 10W ballast) | 40W LED Retrofit | 50W → 40W (20%) | $52/year |
| 8ft T12 (75W + 15W ballast) | 80W LED Retrofit | 90W → 80W (11%) | $94/year |
| 2x 4ft T8 HO (54W + ballast) | 80W LED Retrofit (8ft) | 120W → 80W (33%) | $173/year |
*Annual savings calculated at $0.12/kWh, 12 hours/day, 365 days. Actual savings vary by local rates and usage patterns.
Retrofit Installation Guide
- Disconnect Power – Turn off circuit breaker and verify power is off
- Remove Fluorescent Tubes – Take out existing T8/T12 tubes
- Bypass Ballast – Connect line voltage directly to tombstones (follow included instructions)
- Mount LED Strip – Use existing brackets or included mounting hardware
- Wire Connections – Connect LED strip to line voltage (black to hot, white to neutral)
- Restore Power – Turn on breaker and verify operation
⚠️ Important: Bypassing ballast required for most installations. Some electronic ballasts may be compatible—check manufacturer specifications. When in doubt, consult a licensed electrician.
Product Specifications
Why Choose HAROLUX Retrofit LED Strip Lights
- Maximum Efficacy – 130LM/W industry-leading efficiency
- Simple Installation – Direct retrofit, minimal modifications
- Proven Reliability – 50,000+ hour lifespan, 5-year warranty
- Full Certification – UL/ETL/DLC listed for code compliance
- Factory Direct – OEM manufacturer since 2010, competitive pricing
- Technical Support – Installation guidance and troubleshooting assistance
Minimum Order: 50 units | Lead Time: 7-15 working days
Frequently Asked Questions
Can I install these myself?
Basic electrical knowledge required. If comfortable working with household wiring, installation is straightforward. Otherwise, hire a licensed electrician. Most installations take 15-20 minutes per fixture.
Do I need to remove the ballast?
Yes, for most installations. Direct wire bypass eliminates ballast losses and ensures full LED efficiency. Some electronic ballasts may be compatible—check product specifications.
What’s the difference between retrofit and new fixtures?
Retrofit LED strips install into existing fluorescent fixtures, saving labor and material costs. New fixtures replace the entire housing. Choose retrofit when existing fixtures are in good condition; choose new fixtures for renovations or new construction.
Are these dimmable?
Standard models are non-dimmable. 0-10V dimmable versions available upon request. Specify dimming requirements when ordering.
Product Details
Get a Quote
Ready to upgrade your fluorescent lighting? Contact HAROLUX for factory-direct pricing on retrofit LED strip lights.
Last updated: March 2026
