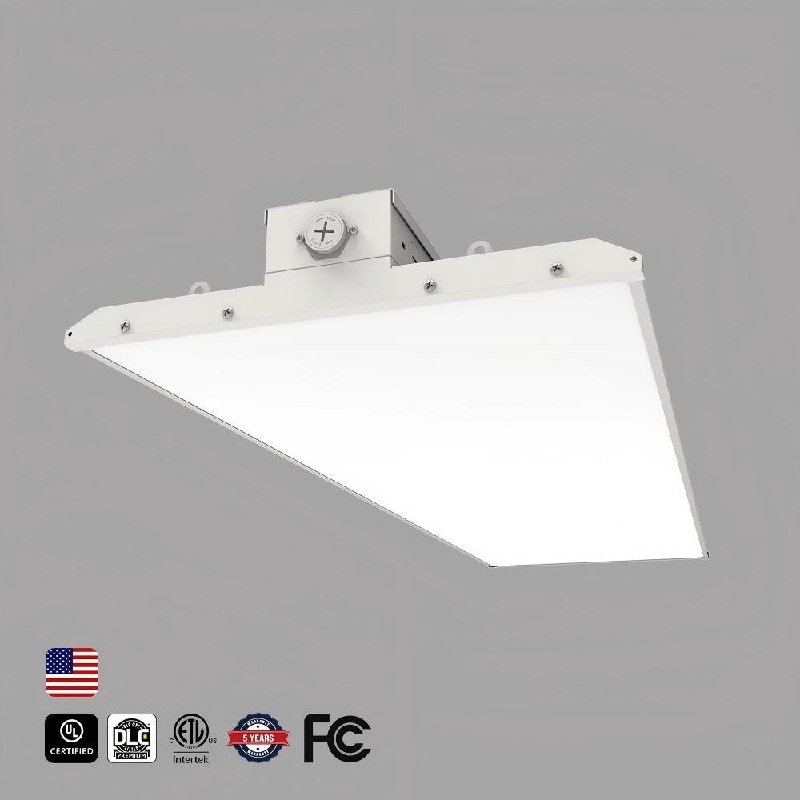

HAROLUX SS-LHB07 LED Linear High Bay Light is a high-performance industrial lighting solution designed for warehouses, gymnasiums, and manufacturing facilities. With selectable wattage from 80W to 400W and tunable color temperature, this fixture delivers up to 60,000 lumens with exceptional 150LM/W efficacy.
Key Features
- Selectable Wattage: 80W/110W/165W/220W/225W/300W/400W
- Tunable CCT: 3000K/4000K/5000K/5700K selectable
- High Efficacy: Up to 150LM/W
- 0-10V Dimmable for smart controls
- Multiple Voltage: AC120-277V / 120-347V / 277-480V
- High CRI Ra>80 for accurate color rendering
- 50,000+ Hour Lifespan with 5-year warranty
Technical Specifications
| Model | Power | Lumens | Voltage |
|---|---|---|---|
| SS-LHB07-80W | 80W | 12,000LM | AC120-277V AC120-347V AC277-480V |
| SS-LHB07-110W | 110W | 16,500LM | |
| SS-LHB07-165W | 165W | 24,750LM | |
| SS-LHB07-220W | 220W | 33,000LM | |
| SS-LHB07-225W | 225W | 33,750LM | |
| SS-LHB07-300W | 300W | 45,000LM |
Product Details
Applications
- Warehouses & Distribution Centers
- Manufacturing Facilities
- Gymnasiums & Sports Facilities
- Workshops & Industrial Plants
- Big-Box Retail Stores
Why Choose HAROLUX?
- 65% energy savings vs metal halide
- UL/DLC Premium certified
- OEM services available
- USA stock, 7-15 day delivery
FAQ
What ceiling height is recommended?
15-40 foot ceilings. Use 80W-110W for 15-20ft, 165W-220W for 20-30ft, 225W-400W for 30-40ft.
Is wattage selectable in the field?

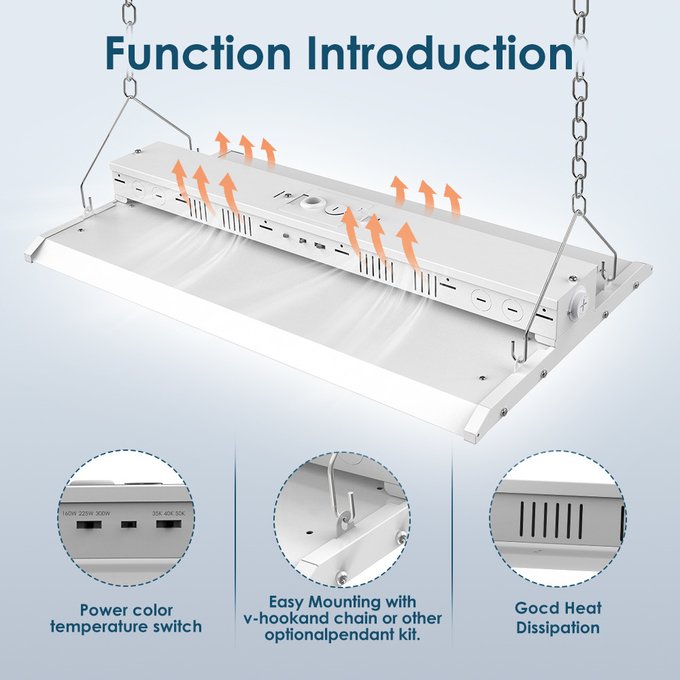

Yes, via dip switches during installation.
Do you offer bulk pricing?
Yes, volume discounts for 50+ units.
