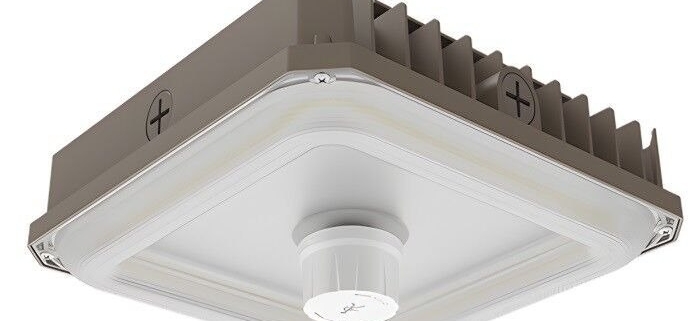

The HAROLUX SS-GP04 LED Canopy Light is a versatile, economical lighting solution designed for outdoor commercial applications. With selectable wattage from 20W to 100W and three color temperature options, this fixture delivers exceptional flexibility for gas stations, parking garages, covered walkways, and loading docks.
Key Features & Benefits

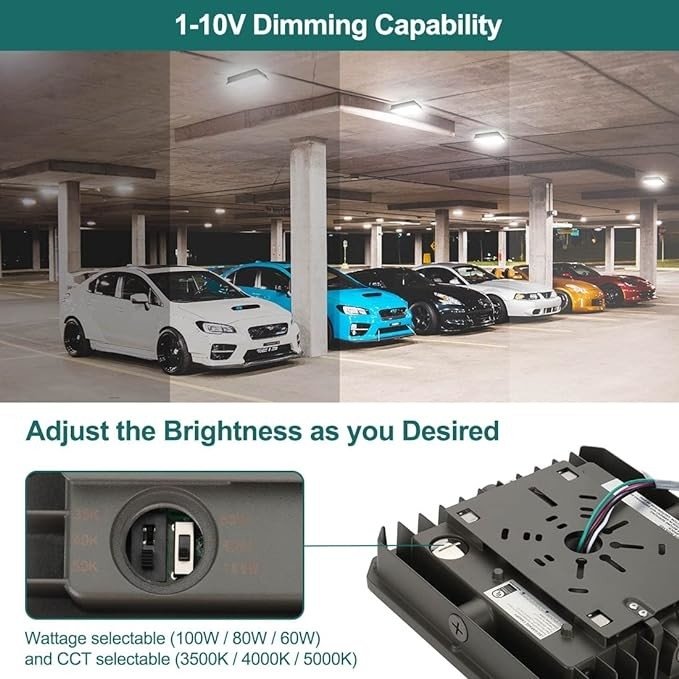

Selectable Wattage & Color Temperature
One fixture covers multiple lighting requirements with field-adjustable power settings:
- 20W/30W/40W selectable – 5,200 lumens output
- 40W/60W/80W selectable – 10,400 lumens output
- 60W/80W/100W selectable – 13,000 lumens output
- CCT Selectable – Switch between 3000K warm white, 4000K neutral, or 5000K daylight on-site
IP65 Waterproof Construction
Built to withstand harsh outdoor conditions with die-cast aluminum housing that is dust-tight and protected against water jets from any direction. Operating temperature range of -30°C to +50°C ensures reliable performance in extreme climates.
Energy Efficiency
Delivers up to 130 lumens per watt efficacy, providing up to 70% energy savings compared to traditional 400W metal halide canopy lights. The 150° wide beam angle ensures uniform illumination across large areas.
Technical Specifications
| Model | Wattage Options | Lumens Output | CCT | Voltage | Beam Angle |
|---|---|---|---|---|---|
| SS-GP04-40/30/20W | 40W / 30W / 20W | 2,600 – 5,200 LM | 3000K/4000K/5000K | AC120-277V | 150° |
| SS-GP04-80/60/40W | 80W / 60W / 40W | 5,200 – 10,400 LM | 3000K/4000K/5000K | AC120-277V | 150° |
| SS-GP04-100/80/60W | 100W / 80W / 60W | 7,800 – 13,000 LM | 3000K/4000K/5000K | AC120-277V | 150° |
Product Details
Installation Options
- Surface Mount – Direct ceiling mount with included mounting bracket. Ideal for concrete and steel canopies.
- Pole Mount – Round pole adapter available for parking structure columns and overhead supports.
- Junction Box Compatible – Standard knockouts for easy electrical connection.
Applications
The SS-GP04 is engineered for demanding outdoor commercial environments:
- Gas Station Canopy Lighting – Uniform illumination for fueling areas with 5000K option for maximum visibility
- Parking Garage & Structure Lighting – Enhanced safety with wide beam distribution and motion sensor compatibility
- Retail Storefront & Drive-Thru Canopies – Inviting entrance lighting that enhances brand presence
- Covered Walkways & Transit Shelters – Consistent illumination for pedestrian safety
- Industrial Loading Docks & Warehouses – Vandal-resistant design for high-traffic environments
Customization Options
- Microwave Motion Sensor – Auto on/off detection with adjustable sensitivity and hold time for energy savings during low-traffic periods
- PIR Occupancy Sensor – Passive infrared sensing for occupied space detection
- Emergency Battery Backup – 90-minute emergency operation for code compliance
- Power Tunable – Field-adjustable wattage output after installation
- CCT Selectable – Switch between color temperatures on-site to match your environment
Why Choose HAROLUX SS-GP04
- Direct Manufacturer Since 2010 – Factory-direct pricing with no middlemen markups from our ISO-certified facility in Guangdong, China
- OEM & ODM Services – Custom branding, private labeling, and specification modifications available
- 25,000 Units Monthly Production – Scalable manufacturing capacity for large commercial projects
- 5-Year Warranty – Comprehensive warranty standard on all LED canopy fixtures
- Quality Assurance – 100% functional testing before shipment
Minimum Order: 10 units | Lead Time: 7-15 working days | Production Capacity: 25,000 units/month
Frequently Asked Questions
What is the best LED canopy light for gas stations?
For gas station applications, look for IP65 waterproof rating, 5000K color temperature for clarity and safety, and wide beam angle for uniform coverage. The SS-GP04 offers all these features with selectable wattage (20W-100W) to match your canopy size. The optional motion sensor reduces operating costs by up to 70% during low-traffic periods.
How many lumens do I need for a parking garage?
Parking garages typically require 5-10 foot-candles of illumination. For general parking areas, calculate approximately 1 lumen per square foot. The SS-GP04 delivers 5,200-13,000 lumens depending on wattage selection, suitable for single-level structures to multi-deck facilities. Contact us for photometric layout assistance.
Can LED canopy lights be used with motion sensors?
Yes, the SS-GP04 supports both microwave and PIR motion sensor options. Microwave sensors detect movement through materials and are ideal for enclosed parking structures. PIR sensors work line-of-sight and suit open-air canopies. Both options include adjustable sensitivity, hold time, and daylight override settings.
Do you offer bulk pricing for LED canopy fixtures?
Absolutely. As a direct LED manufacturer, HAROLUX offers competitive wholesale pricing starting at 10 units. Volume discounts apply at 50+, 100+, and 500+ unit quantities. Contact our sales team with your project specifications for a custom quote including freight to your destination.
What certifications do your LED canopy lights carry?
All HAROLUX canopy lights are designed to meet international safety standards. We provide CE marking and RoHS compliance for European and global markets. UL, ETL, and DLC certifications available upon request for North American markets. Full test reports and IES files available upon request.
Can you customize the canopy light with my brand?
Yes, we offer comprehensive OEM services including custom labeling, branded packaging, and specification modifications. Minimum order for custom branding starts at 100 units. Our engineering team can also develop custom form factors or feature sets for large volume commitments.
Get a Quote
Ready to upgrade your lighting project? Contact HAROLUX for factory-direct pricing on LED canopy lights.
Last updated: February 2026
