0-10V Smart Dimmer

Name: 0-10V Smart Dimmer
Brand: HaroLux
Availability: InStock

With a wireless 0-10V Smart Dimmer Switch, lights can be controlled by APP, Alexa and Google Assistant through Bluetooth or WiFi connection.

Harolux invents this 0-10V Smart Dimmer as an alternative for traditional dimmer. As a result of a 1/2 inch connector design, our 0-10V dimmer switch can be easily installed to Junction box, luminaires with knock-out, or 1/2 inch conduit. What’s more, IP65 rating makes it suitable for use in some outdoor wet locations.

Features

0-10V stepless dimming
Wifi or Bluetooth connection
Controlled by smartphone APP
IP65 Waterproof for outdoor use
Voice control by Amazon Alexa or Google Assistant

Turn Your Lights to Smart

No matter what type of your lights are, this smart dimmer switch enables you to turn any of your lights to smart control, saves more than changing the light source itself.

Control at Anytime from Anywhere

Thanks to the WiFi or Bluetooth Mesh connection, you are able to control or dim the lights through our free Smartphone APP at anytime from anywhere. What’s more, the schedule on-off function allows you to preset the time that you want to turn the light on or off. In all, the Smart Dimmer Switch by Harolux can make your light smart within one touch.

IP65 Rated – Perfect for Outdoor Use

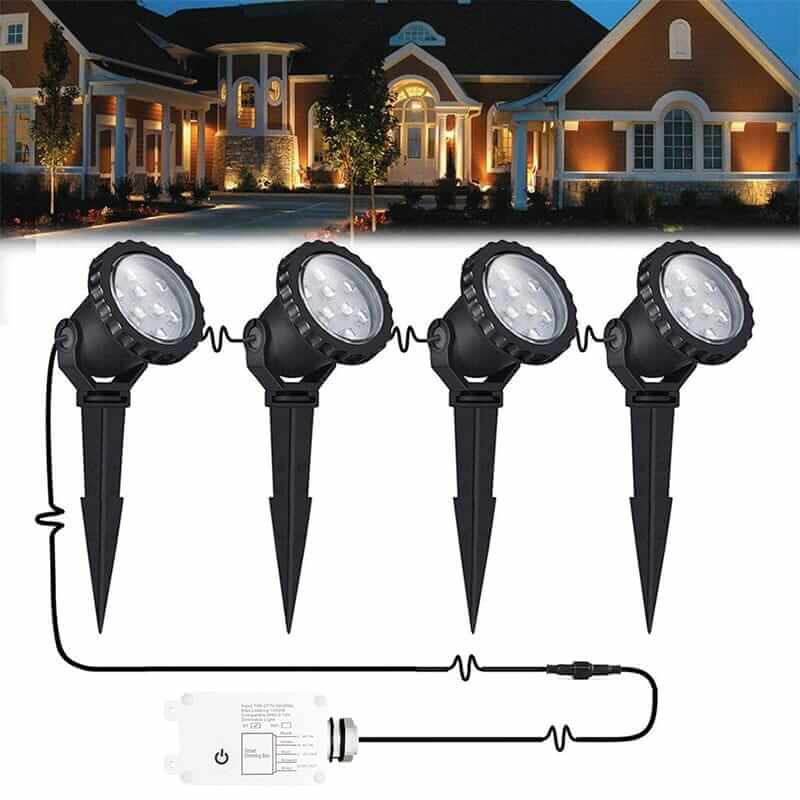

Looking to upgrade your outdoor lighting system? Put our smart 0-10v dimmer kit on your outdoor lights like wall pack, area light, or garden light. It is IP65 waterproof and suitable for wet locations, which can handle harsh weather, heavy rain, or wet conditions.

smart dimmer switch 0-10V Triac Wifi smart dimmer switch

google home accessories 0-10V Triac Wifi smart dimmer switch

Voice Control

Compatible with Amazon Alexa and Google Assistant, our Smart Dimmer Switch let you enjoy the hands-free convenience of easy voice control. For example, while your hands are full or when it is dark in your room, simply ask, “Alexa/OK Google, turn on the ceiling light/set the bedroom light to 25%”.

One Smart Dimmer for all Lights

The loading capacity of this Smart Dimmer is up to 1000W. Therefore, you may group several lights with one of our smart dimmer switch and control them at the same time. Certainly it is lower cost to turn your lights into smart lighting.

Specification

Model	SK-1000WA-**
Material	Plastic
Input	AC120-277V 50/60Hz
Output(W)	1000W@120V/2000W@220V
Connection	WiFi or Bluetooth
Dimming Ability	0-10V
Certification	ETL/CE/RoHS
Warranty	3 Years
Dimensions	122x58x36 mm

Free APP for 0-10V Smart Dimmer

Get A Quote

Frequently Asked Questions

01 How to connect a smart dimmer?

Download Smart Life APP.
Follow the guides on APP to register an account and login in.
Ensure the dimmer switch is in correct connection with your light.
Switch ON/OFF the smart dimmer 3 times to enter pairing mode, your light starts blinking.
Tap the plus (+) icon in the top right corner on the Home page to go to the device adding page, You can manually add devices on the Add Manually tab or tap Auto Scan to enable the app to automatically detect devices.

02 How to use Alexa to control dimmer switch?

Alexa needs network to operate, it’s better to use our WiFi smart dimmer, otherwise you need a gateway to get network for Bluetooth model.
Ensure the smart dimmer is added in Smart Life APP.
Change the smart dimmer name to an easily recognized word or phrase, like “bedroom light”.

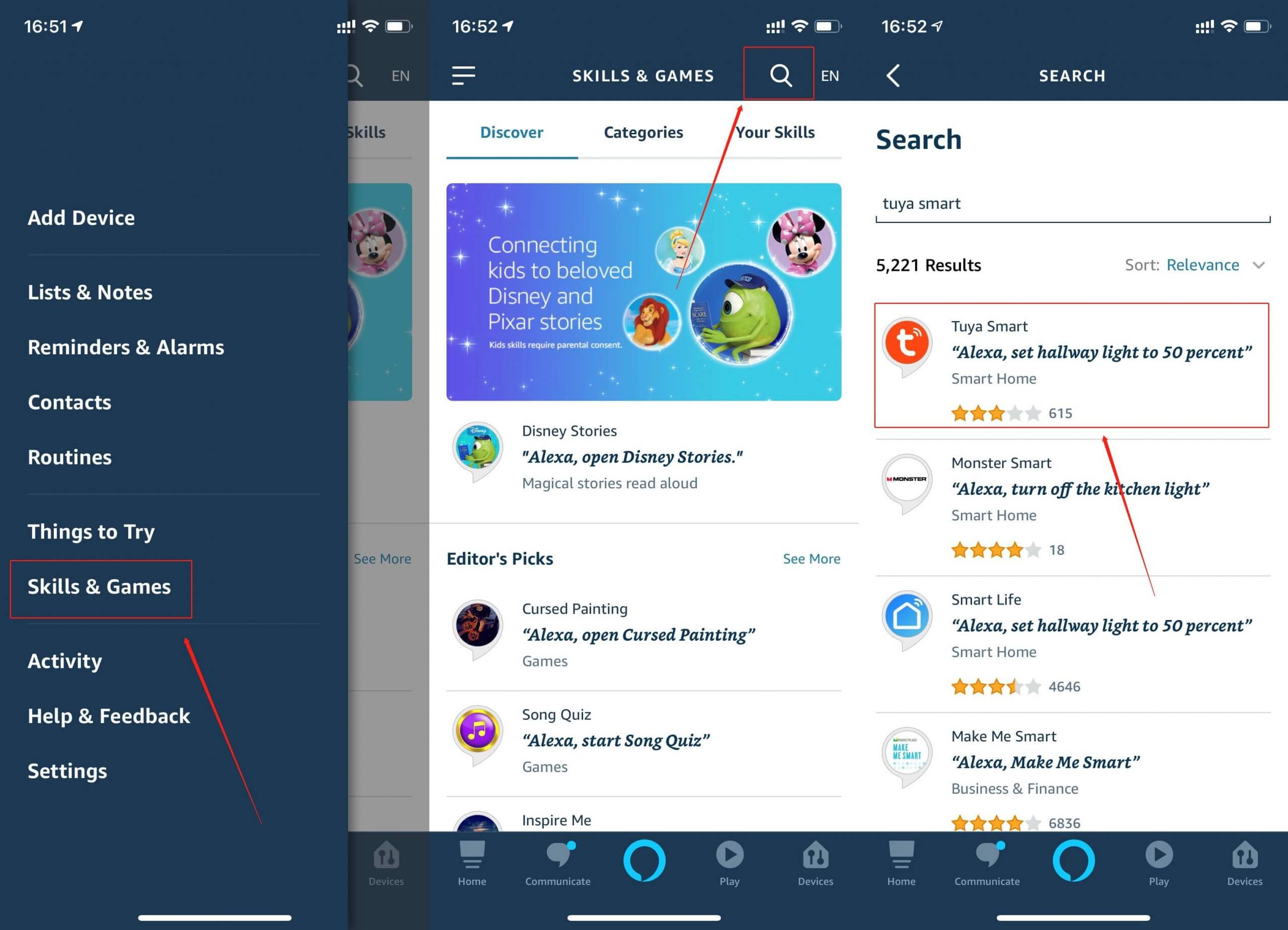

Tap “Skills&Games” in Alexa APP, then search “Tuya Smart”. Select “Tuya Smart” and tap “ENABLE” to enable the skill.

You will be redirected to the account link page, follow the guides step by step to link your Tuya Smart account to Alexa.
Enjoy controlling your dimmer switch with Alexa.

03 Why do smart switches need a neutral wire?

The Neutral wire provides power for the dimmer switch together with Live wire, in such completed circuit circumstances, the dimmer switch will get the best dimming performance. As a comparison, those smart dimmers without neutral wire have a minimum loading limit, they usually can not work with lamps under 5w.

04 Does the 0-10V smart dimmer work with LED grow light ?

To help your plant grow healthy, it’s necessary to choose a dimmable grow light. But in most cases, it’s inconvenient to control the light manually.

With a 0-10v smart dimmer provided by Harolux, you are able to control your grow lights easily on a smartphone. Make sure your light is 0-10V dimmable at the first, if it’s not, we also provide smart triac dimmer switch with up to 300W loading ability.

05 How do I buy your smart dimmer switch?

We accept both small sample orders and mass production orders. Cost is subject to change depending on volume.

For sample orders, it will take 3-5 days to produce and another 5-9 days for shipping. Send an inquiry to us and our professional sales representative will respond within 12 hours.

For mass production please send us your requirements and leave your email to discuss more about package, customization, and shipping.
